Time battery 9070

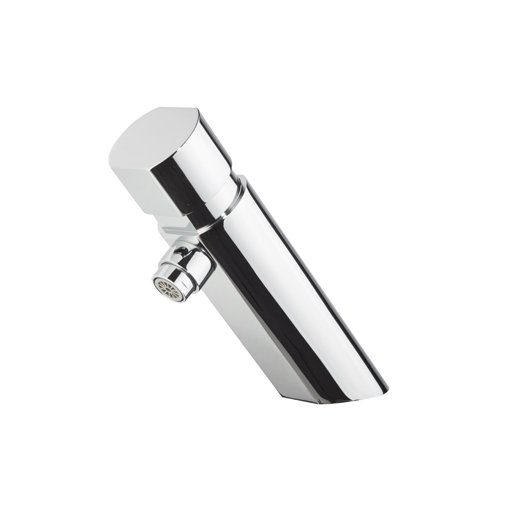

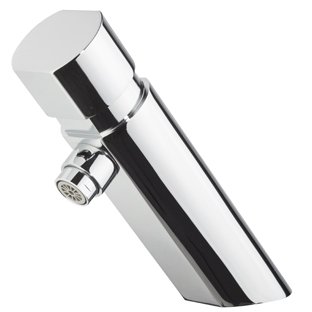

The self-closing battery from the 9070 series is a universal equipment in public spaces, such as swimming pools, gyms, fitness clubs, etc. The body is made of chrome-plated brass. The 9070 battery has one G1 / 2 connection and an attached flexible connection hose. A single outflow of water takes about 10 seconds ± 3 seconds (at a water pressure of 3 bar). The amount of water used is 6 l / m. The minimum connection pressure is 0.5 bar, the maximum is 6 bar. It is worth adding that the recommended connection pressure should be 2-4 bar.

The 9070 basin tap has several elements that regulate the time and amount of water flow. The elements are:

• a cup regulating the flow of water;
• a water flow reducer, attached to the faucet;
• water flow regulating hole, water flow time adjustment option is not available when anti-block system is used.

The offered tap is available in three variants:

• 9070 universal variant, equipped with one 1/2 connection and a cup, a water flow reducer and an adjustment hole;

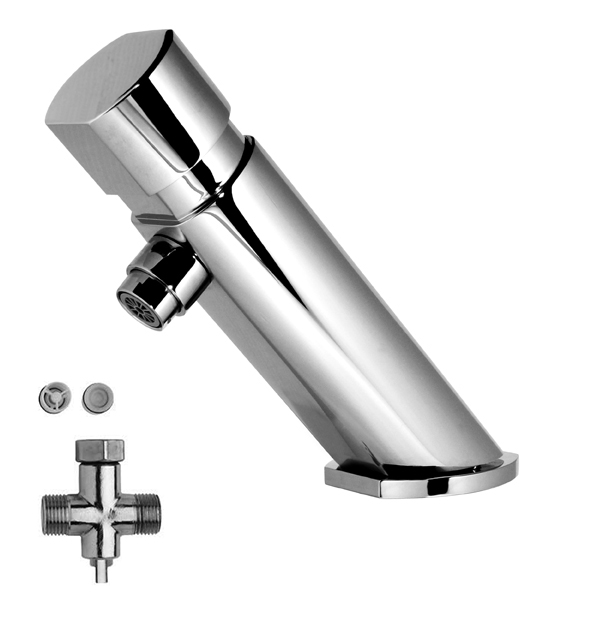

• 9070 / M variant equipped with 2 x G1 / 2 concealed mixer, cup, flow reducer and regulation hole;
• 9070AB variant with an integrated anti-block system, which includes a cup and a flow reducer. The option to adjust the water flow time is not available.

 In addition, each 9070 is certified by the Polish Institute of Hygiene, CE Declaration of Conformity and the National Declaration of Performance
