Time battery 9008T
| Product code: | 9008T |
| Series: | Vessel basin timer |
| Category: | Timed flow |
| Amount: |
|

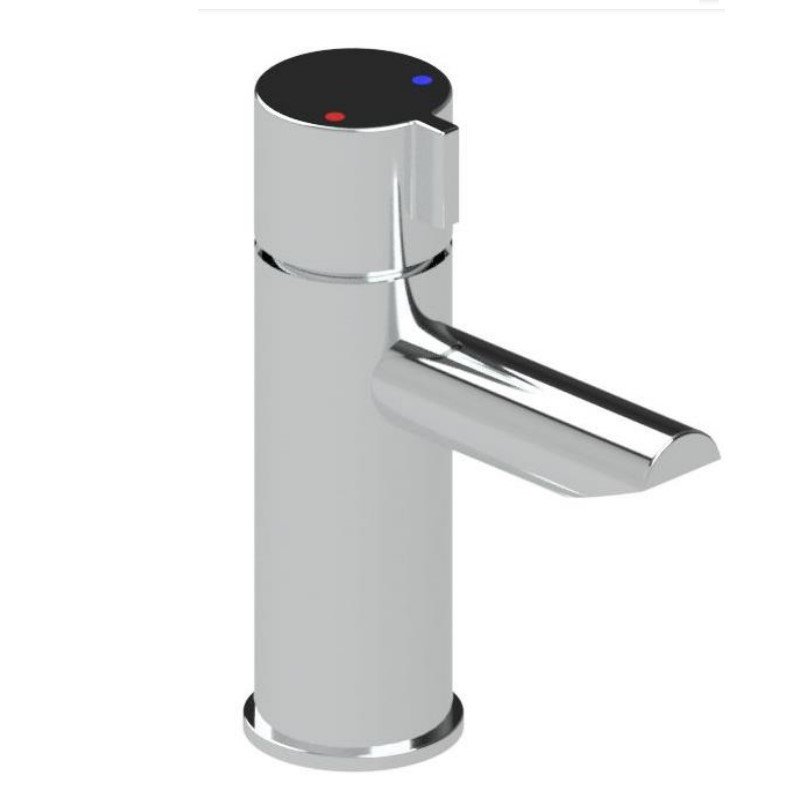

The 9008T button thermostatic time battery is made of chrome-plated brass and is perfect for public use. The offered faucet has a built-in mixer so that the user can change the water temperature on his own. What's more, the 9008T model uses a modern TMV3 thermostatic expansion valve. TMV series valves are used in general refrigeration, they are used in devices with one or more cooling circuits.
The 9008T faucet is equipped with two 1/2 "connections. Starting the water flow is possible thanks to the button, the flow time lasts from 8-15 seconds ± 5 seconds (depending on the settings entered). Moreover, the manufacturer has set the maximum water temperature to 38 ° C at the factory. adjustable.
Product features and benefits:
- Chromed brass body
- Self-closing time 15 secs at 3 bars (not adjustable)
- TMV3 thermostatic progressive cartridge
- Maximum temperature preset at 38°C, adjustable
- Check valves with 9l/min flow limiter and filters in the water supply

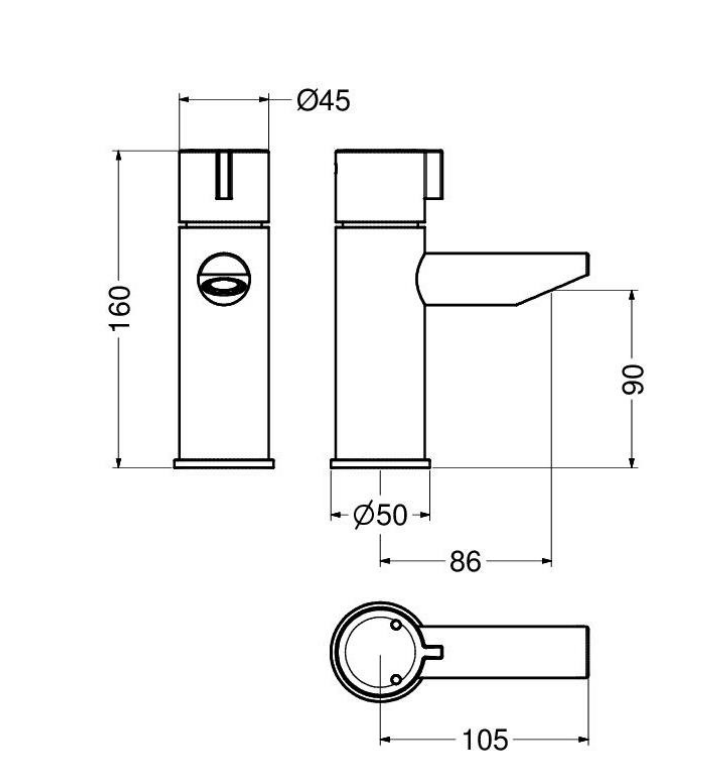

| Connector | 2 x 1/2" |
|---|---|
| Mixer | Yes |
| Desgin | Chrome-plated brass |
| Water time flow |
Adjustable from 8-15 seconds ± 5 second |
| Start |
Button |
| Water Temperature |
5-60°C |
| Water pressure reduction | up to 9l / min. |
| Operating pressure | Min 1 bar - Max 5 bar |
